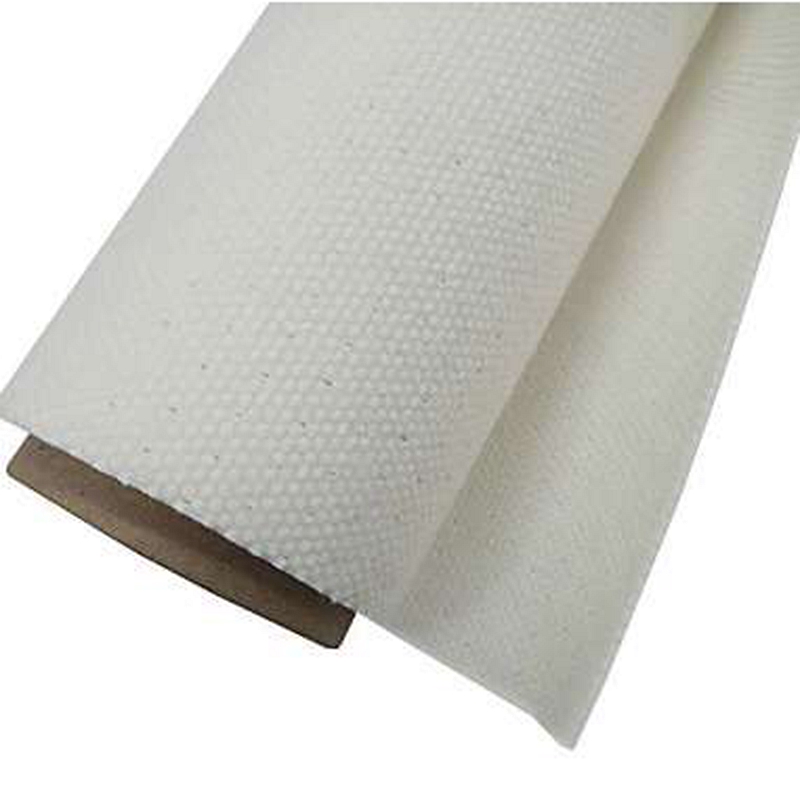

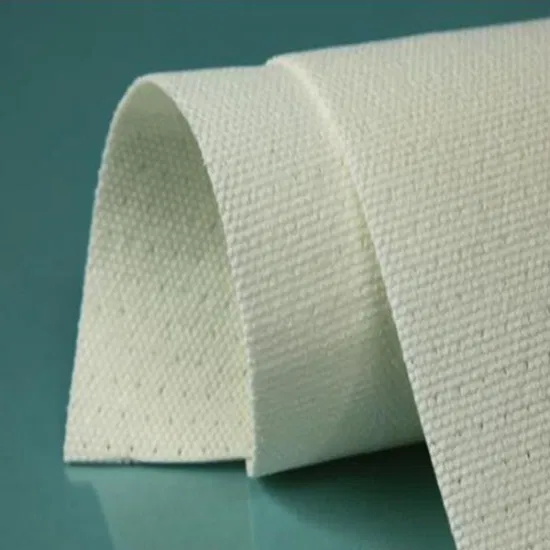

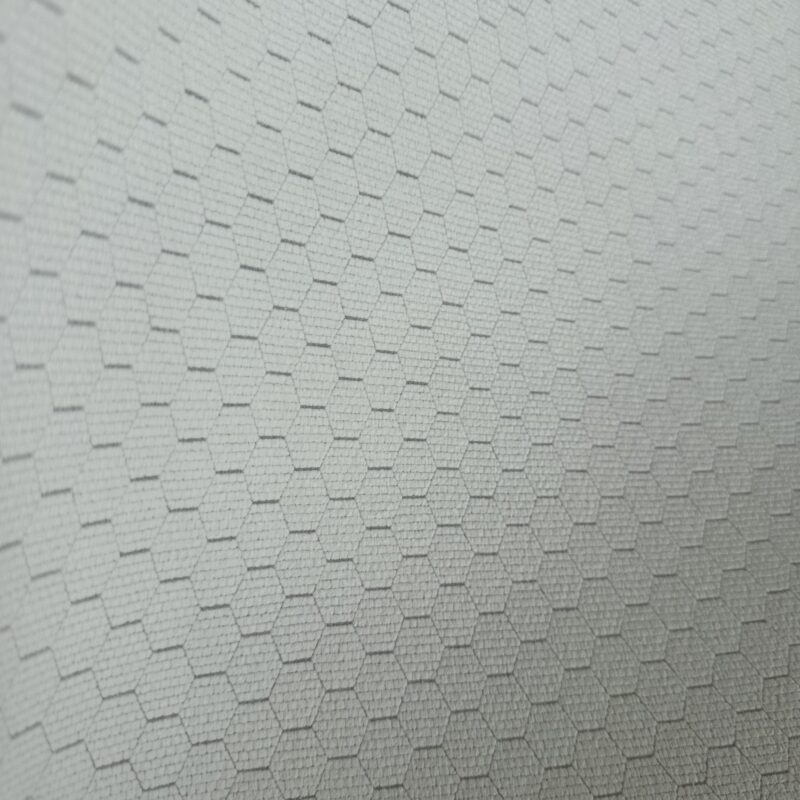

Lantor Coremat XM
■ The cost effective solution for open mould processes
■ Is used as core material and/or print blocker
■ Is a polyester nonwoven and compatiblewith all regular types of resins,including Polyester,Vinylester and Epoxy
■ Is suitable for hand lay-up and spray-up processes
Applications Lantor Coremat XM
■ Marine:hulls,decks and structures of boats and yachts
■ Transportation:parts andpanels of cars,trailers, trucks and RV’s
■ Mass ransit:interior and exterior oftrains,light rail and buses
■ Leisure:kayaks,surfboards,pools and tubs
■ Industrial:cladding panels,containers andtanks
■ Wind energy:nacelle covers and spinners
Dimensional data
| Properties | XM 2 | XM 3 | XM 4 | XM 10 | |
| Thickness | mm | 2,0 | 3,0 | 4,0 | 10,0 |
| Roll length | m | 80 | 50 | 40 | 15 |
| Roll width | m | 1 | 1 | 1 | |
| Dryweight | g/m2 | 80 | 110 | 140 | 250 |
| Resin uptake | kg/m² | 1,0 | 1,5 | 2,0 | 6,5 |
| Density impregnated | kg/m³ | 540 | 540 | 540 | 680 |
Typical mechanical properties of Lantor Soric
impregnated with unsaturated polyester resin
| Mechanical properties* | unit | value | test method |
| Flexural strength | MPa | 8,5 | ASTM D790 |
| Flexural modules | MPa | 1250 | ASTM D790 |
| Tensile strength across layers | MPa | 4 | ASTM C297 |
| Compression strength:10%strain | MPa | 10 | ISO844 |
| Shear strength | MPa | 3 | ASTM C273-61 |
| Shear modules | MPa | 25 | ASTM C273-61 |
