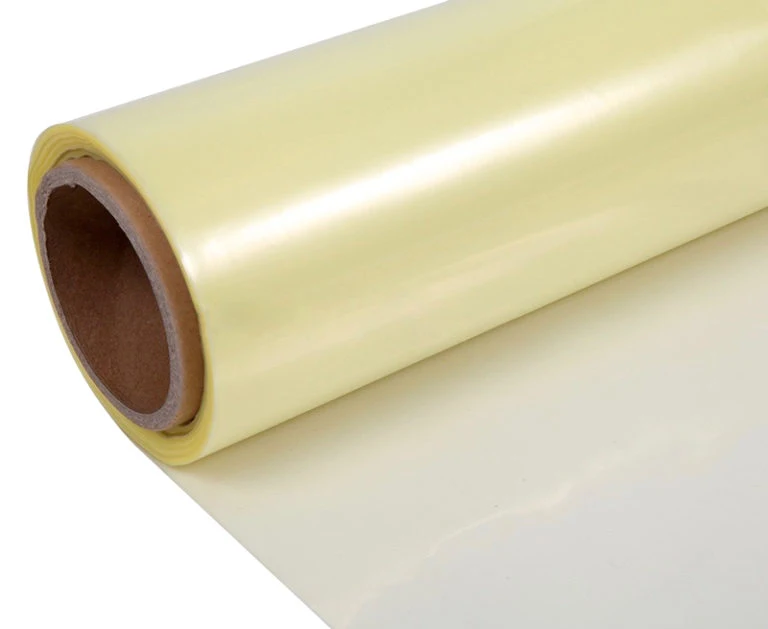

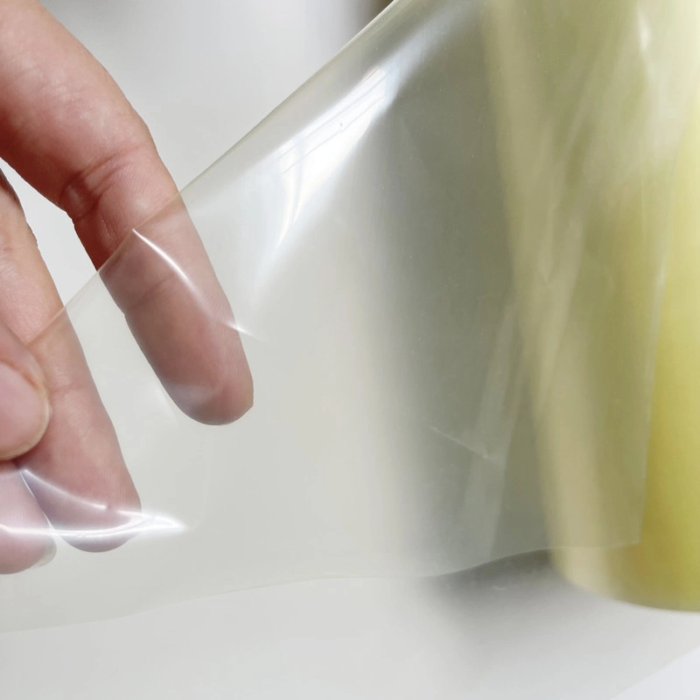

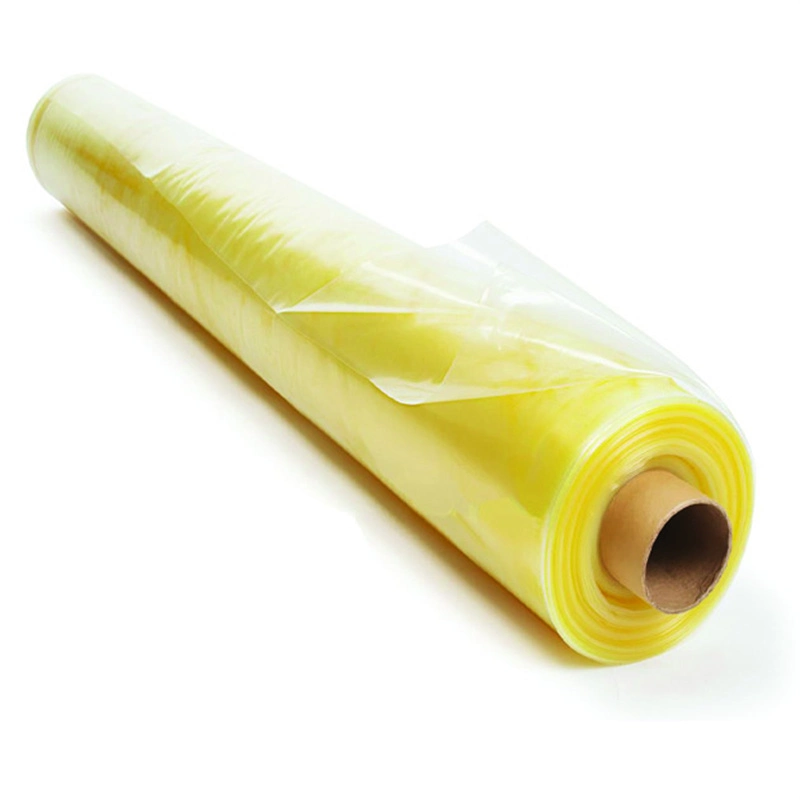

Vacuum bagging film is a five co-extruded film vacuum-type with charactors of soft and pliable. It has the characteristics of high strength, good air-tightness, soft texture, uniformity thickness, high breaking elongation rate. Excellent ductility makes it meet the requirements of various shapes easily, and its high temperature properties make it easy to apply to processes of “vacuum infusion resin” and “wet vacuum”. It is widely used for producing yachts, wind-power blades, cabin cover, car surrounded, bonnet, helmets and other components with high strength and light weight.
Product Property
- Good extensibility, thermal stability, high tensile strength and tear-resistance
- Maintain softness even in winter.
- Suitable for vacuum importing and infusion technology of unsaturated, vinyl resin, epoxy resin system.
- Widely used in boat equipment, wind turbine blades and other industries.vacuum infusion Flow mesh/net For marine industry in resin infusion process
| Product No. | Thickness（μm） | Width（m） | Color | Temp. Resistant（℃） |
| CI120 | 50/60/75 | 1-16 | Yellow / Transparent | ≤120 |
| CI150 | 50/60/75 | 1-16 | Yellow | ≤150 |
| CI170 | 50/60/75 | 1-16 | Yellow | ≤170 |
