CINON CM
- Cost-effective solution for closed mold processes
- For use as a core materialand vacuum infusion medium
- lsa pressure stable polyester non woven and compatible with allregulartypes of resins, including Polyester, Vinylester, Phenolic andEpoxy.
- Is suitable for closed mould processes, including infusion, RTM light,RTMheavy.
Product advantages
- Superior compressive performance compared to polyurethane
- A cost-effective core material option
- Reduces product weight
- Increases product rigidity
- Improves product aesthetics
- Excellent conformability
- Outstanding impact resistance
- Product thickness can be controlled as required
- Integrated flow channels function as a flow medium,
- eliminating the need for additional distribution materials

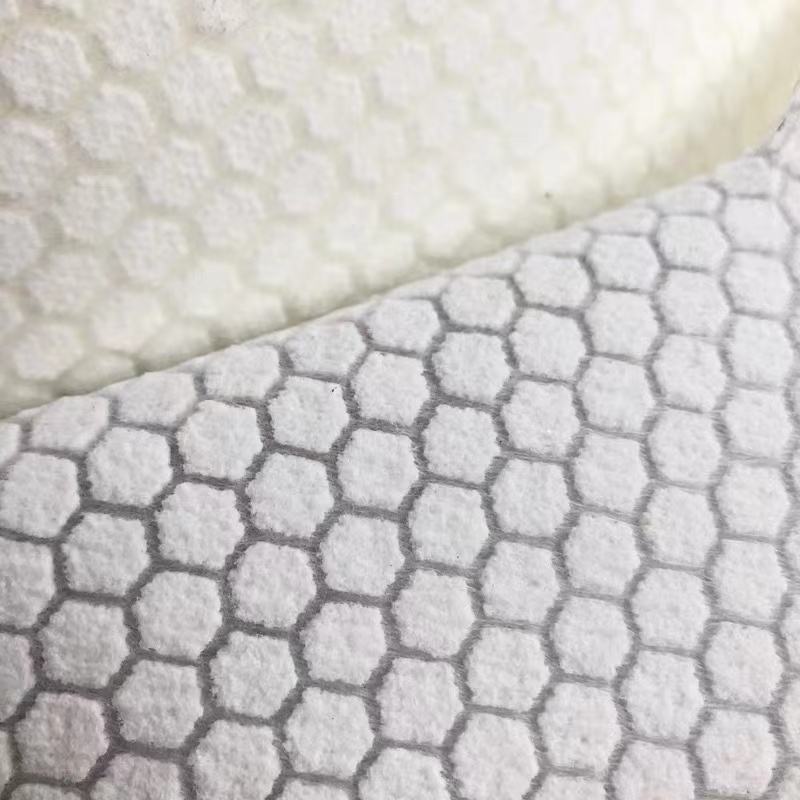

- 10mm honeycomb core: The hexagonal core does not absorbresin and features low compression (10% @ -0.8 bar)
- 0.5mm flow channels: The pathways between adjacenthexaaons accelerate resin flow
APPLICATIONS
- Marine: hulls, decks and structures of boats and yachts
- Transportation: parts and panels of cars,caravans, trailers, trucks
- Mass transit: interior and exterior of trains, lightrail and busesLeisure: sailboats, speedboats, kayaks, surfboards, skis, swimmingpools, and bathroom components
- Industrial: Fumiture, building facade panels, covers, pressure vessels,and storage tanks
- Wind Energy: Nacelle covers, wind turbine blades, and spinners
- RC Model Making: (UAV/Drone fuselage shells)
FAQ:
Q: What is a core mat used for in composites?
A: Core mat is used to increase thickness, stiffness, and improve resin flow in vacuum infusion processes.
Q: Can this core mat replace other well-known core materials?
A: Yes, it can be used as an alternative to many high-performance core materials used in vacuum infusion processes.
Q: Do I still need flow media?
A: In most cases, no. The core mat already provides resin flow channels.
